Acoustic Architecture: The Resounding Legacy of Sound Mirrors
by Sean Hill on Jul 27, 2023
We have often drawn upon diverse sources of inspiration, ranging from the natural world to historical structures. Over the years, our focus has evolved towards incorporating principles of low energy and low embodied carbon into our designs, aligning with the urgent need for sustainable solutions in the architecture industry. Among these numerous sources of inspiration, there is one historically significant technological invention that continues to intrigue me – Sound Mirrors. Used extensively during the early 20th century before becoming obsolete with the advent of radar, these ‘listening ears’ have left a resounding impact on the world of architecture and design.
Chapter 1: The Science of Acoustic Mirrors
Before diving into the details of specific mirrors, let’s explore the underlying scientific principles. Acoustic mirrors, also known as sound mirrors, were rudimentary radar forerunners developed between 1916 and the 1930s to detect incoming enemy aircraft and airships. The idea was to provide an early warning system for potential attacks on coastal towns.
Chapter 2: The Listening Ears Become Obsolete
Despite their innovative approach, sound mirrors had their limitations. As aircraft speed increased, the mirrors’ utility decreased – an airplane would already be in sight before the mirror could detect it. The invention of radar in the late 1930s eventually rendered these structures obsolete. However, despite their functional obsolescence, these structures continue to intrigue architects and acoustic enthusiasts alike for their unique construction and historical significance.
Chapter 3: The Famous Denge Sound Mirrors

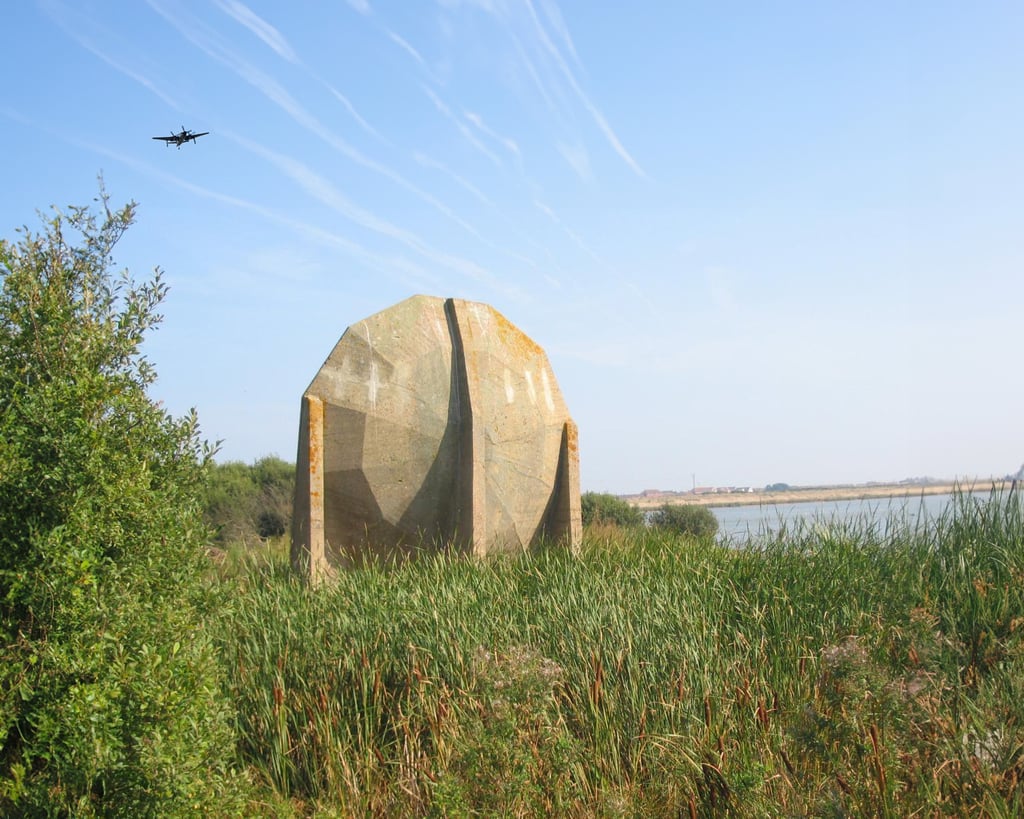

The Denge sound mirrors, located in Dungeness, Kent, are arguably the most renowned set of acoustic mirrors, known for their strikingly haunting presence amidst a barren landscape. These monolithic concrete structures, reflecting the stark light of the Kent coast, serve as a reminder of our history and the rapidly changing technological landscape.
Chapter 4: The Lesser-known Mirrors and Their Unique Designs
While Denge mirrors receive most of the spotlight, several lesser-known mirrors, each with its unique design, are scattered across the British coastline. This includes mirrors at locations like Kilnsea in East Yorkshire, Boulby in North Yorkshire, Redcar, Sunderland, and more. Some of these have unfortunately been demolished, like the ones in Hartlepool and Seaham.
Chapter 5: The Southern Coast Acoustic Mirrors
Sound mirrors were not confined to the north; many were built along the southern coast as well. These locations included Abbott’s Cliff, east of Folkestone, Kent, Fan Bay, east of Dover, Kent, Hythe, Kent, Joss Gap, Kent, Selsey, West Sussex, and Warden Point, Isle of Sheppey, Kent. Each location presents a unique narrative of historical and architectural significance.
Chapter 6: The International Sound Mirror
The concept of sound mirrors transcended national borders with the construction of a mirror in Maghtab, Malta. This represents the wide reach of these structures and their significance during the period they were operational.
Chapter 7: The Snave Experiment
The Snave location on Romney Marsh stands out for its unique horizontal disc design, a deviation from the conventional design of the sound mirrors. This represents an interesting variant of the aeroplane detection system used at the time.
Chapter 8: Visiting the Acoustic Mirrors
For those interested in exploring these remarkable structures, many of them are still standing and accessible to the public. They represent an opportunity to delve into the past and glean valuable insights into the technological advancements of the early 20th century. The chapter provides details on where and how to visit these architectural gems.
Chapter 9: Contemporary Interpretations of Sound Mirrors
Today, architects and artists have reinterpreted the concept of sound mirrors, incorporating them into modern installations for art, education, and entertainment. An example is the modern sound mirror next to the Royal Military Canal in Kent. Another example is Sonic Marshmallows in Essex. These installations provide a contemporary interpretation of the sound mirror concept, serving both aesthetic and educational purposes.
Chapter 10: The Legacy of Sound Mirrors and Contemporary Architecture
Finally, we delve into the influence these historical structures have on contemporary architectural designs. Not only do they continue to inspire modern installations, but the underlying principles of using natural phenomena and local resources in their construction resonate with the low energy and low embodied carbon designs that we focus on in our studio.
The legacy of sound mirrors serves as a reminder that architecture should be a synthesis of form, function, and respect for the environment. In an era where sustainability and energy efficiency are crucial, the ingenuity of the sound mirrors provides valuable lessons for architects, designers, and everyone invested in the future of our built environment.
FAQs
1. What are acoustic mirrors?
Acoustic mirrors, also known as sound mirrors, were developed between 1916 and the 1930s as rudimentary radar forerunners to detect incoming enemy aircraft and airships. They served as an early warning system for potential attacks on coastal towns.
2. Why did acoustic mirrors become obsolete?
With the increase in aircraft speed, the utility of sound mirrors decreased. The aeroplane would already be in sight before the mirror could detect it. The invention of radar in the late 1930s rendered these structures obsolete. However, they still intrigue architects and acoustic enthusiasts for their unique construction and historical significance.
3. Where can I see the most famous acoustic mirrors?
The most renowned set of acoustic mirrors, known as the Denge sound mirrors, are located in Dungeness, Kent. They’re known for their haunting presence amidst a barren landscape.
4. Are there any modern interpretations of sound mirrors?
Yes, contemporary architects and artists have reinterpreted the concept of sound mirrors, incorporating them into modern installations for art, education, and entertainment. Examples include the modern sound mirror next to the Royal Military Canal in Kent and Sonic Marshmallows in Essex.
5. How do acoustic mirrors influence contemporary architecture?
The underlying principles of using natural phenomena and local resources in the construction of sound mirrors resonate with the current focus on low energy and low embodied carbon designs. They serve as a reminder that architecture should be a synthesis of form, function, and respect for the environment. This ingenuity provides valuable lessons for architects, designers, and those invested in the future of our built environment.
