Exploring Structural Insulated Panels: Are SIPs Right for Your Self-build project?
by Sean Hill on May 30, 2023
In the world of modern construction methods, structural insulated panels (SIPs) have emerged as a groundbreaking solution that offers numerous advantages over traditional build methods. With their ability to accelerate the construction process, achieve exceptional airtightness, and reduce energy consumption, SIPs have garnered significant attention in the architectural industry. In this comprehensive guide, we will delve into the world of SIPs, exploring their benefits, drawbacks, cost implications, and provide expert advice on how to ensure a successful SIPs build. Join us on this journey as we discover how this innovative construction system is revolutionising the industry.
Chapter 1: Unveiling the Potential of Structural Insulated Panels

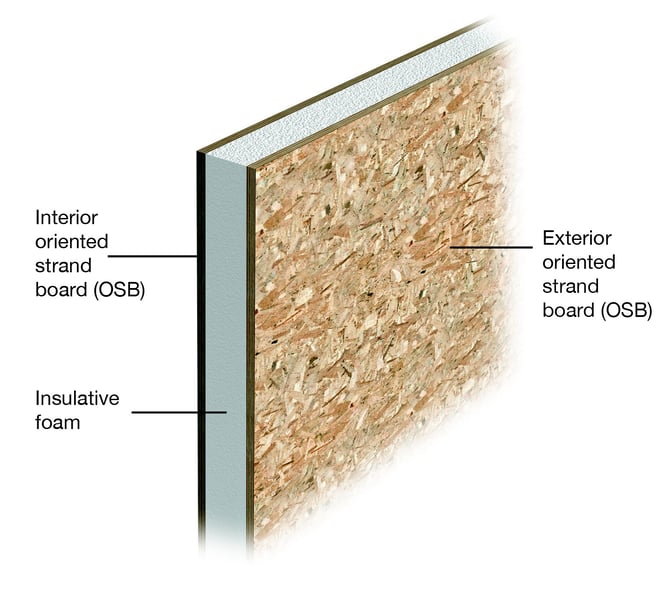

To understand the advantages of SIPs, we must first comprehend their fundamental nature and composition. Structural insulated panels are essentially panels comprised of insulation foam sandwiched between two oriented strand boards (OSB), which act as the structural components of the building. These panels come in standardised sizes and can be customised to suit specific project requirements. By utilising SIPs for external walls, internal load-bearing walls, and roof panels, architects can tap into the numerous benefits they offer for contemporary design-led architecture studios that prioritise low energy and low embodied carbon designs.

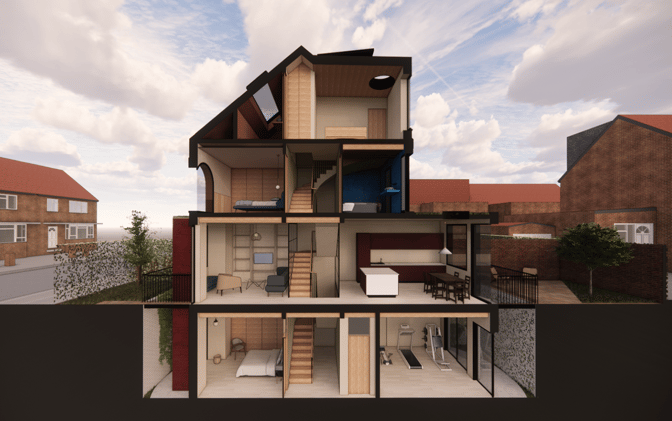

New build Post War Victorian House, Kensal Rise – to be built using SIPs
Chapter 2: The Pros of Building with Structural Insulated Panels
2.1 Enhanced Thermal Performance and Airtightness
One of the significant advantages of SIPs over traditional timber frame constructions is their superior thermal performance. With timber studs spaced at 1200mm centres, SIPs dramatically reduce repeated cold-bridging, thereby improving the overall energy efficiency of the building. Moreover, the inherent airtightness of the OSB boards and the rigid insulation core contribute to minimal air leakage, making SIPs an excellent fit for energy-efficient projects such as Passivhaus designs.
2.2 Efficient and Speedy Construction Process
SIPs’ factory-made panels offer greater accuracy and consistency compared to on-site cut timber frames, resulting in minimised gaps during construction. This, coupled with the off-site fabrication process, significantly reduces build times and ensures a safe and dry environment during the construction phase. By opting for SIPs, architects can achieve a watertight stage swiftly, accelerating the overall project timeline and reducing costs associated with scaffolding, plant hire, and site insurance.

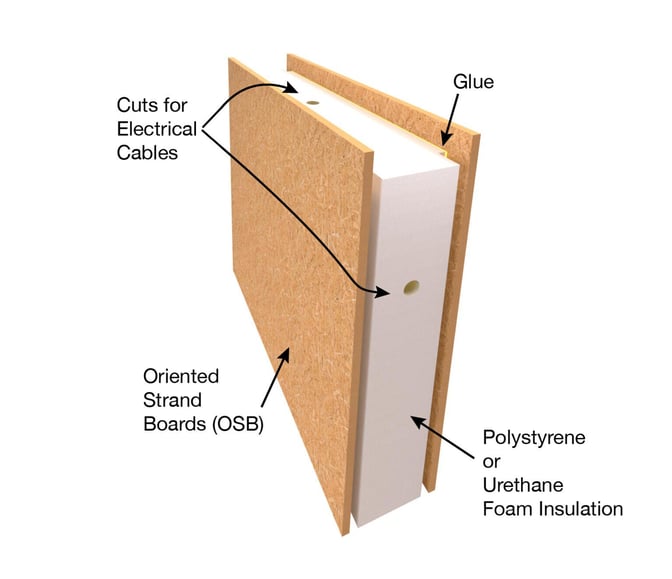

SIPs panel showing how it is made, including holes for electrical cables
2.3 Versatile Design Possibilities
The structural integrity of SIPs eliminates the need for traditional roof trusses, providing architects with the freedom to create unique and spacious interiors. By spanning up to 4.8m from eaves to ridge, SIPs allow for higher ceiling heights, transforming the living spaces into open and visually stunning areas. This versatility opens up a world of design possibilities, enabling architects to craft contemporary, light-filled homes that align with the aesthetic preferences of their clients.
Chapter 3: Understanding the Limitations of Structural Insulated Panels
3.1 Moisture Sensitivity
While SIPs offer exceptional benefits, their vulnerability to moisture is an important consideration. It is not recommended to use SIPs in flood zones or below ground, as the exposure to moisture can compromise their structural integrity. In such cases, masonry builds might be a more suitable alternative. However, architects can explore hybrid solutions, combining masonry for the ground floor and SIPs for the upper storeys, to strike a balance between the advantages of both construction methods.
3.2 Ventilation Requirements
The airtightness of SIPs necessitates adequate ventilation strategies to prevent condensation buildup and maintain air quality within the home. Incorporating mechanical ventilation heat recovery (MVHR) systems can help achieve a balanced airflow, ensuring a comfortable and healthy living environment. Architects should work closely with HVAC professionals to integrate ventilation systems seamlessly into the design and optimise energy efficiency.
3.3 Limited Availability of Experienced Builders
SIPs are still considered a specialised build system, and finding experienced builders who are proficient in working with SIPs might pose a challenge. Architects should collaborate with reputable SIPs manufacturers and actively seek out builders with expertise in this construction method. Establishing strong partnerships with experienced professionals can contribute to the success and efficiency of the SIPs project.
Chapter 4: Examining the Load-Bearing Capabilities of Structural Insulated Panels
In the world of construction, one persistent misconception revolves around the load-bearing potential of Structural Insulated Panels (SIPs). This chapter delves into this topic, shedding light on the versatile applications of SIPs in both structural systems and as infill walling elements. Architects and builders can harness the inherent load-bearing capabilities of SIPs to craft efficient and adaptable designs that align precisely with their project’s unique structural prerequisites.
Dispelling the Misconception: SIPs as Load-Bearing Components
It’s not uncommon for individuals in the construction industry to question whether SIPs possess the necessary strength to serve as load-bearing elements. To address this concern, it’s crucial to understand the dual roles SIPs can play in building construction:
1. Full Structural System:
SIPs can indeed serve as a comprehensive structural system for a building. Contrary to the misconception, they are more than capable of bearing the vertical and horizontal loads imposed by the structure. SIPs are engineered with precision, incorporating both the insulating core and structural facings, which, when combined, provide remarkable load-bearing capabilities.
2. Infill Walling for Various Frame Structures:
Beyond being a standalone structural system, SIPs can be employed as infill walling for other frame structures, including steel, concrete, oak, or glulam timber frames. In this capacity, SIPs function as an integral part of the building envelope, offering superior insulation properties while contributing to the overall structural integrity of the building. Architects can seamlessly integrate SIPs into these diverse frame systems, harnessing their thermal efficiency and load-bearing attributes.
Unlocking Architectural Versatility with SIPs
The load-bearing capabilities of SIPs unlock a world of architectural possibilities. Architects can leverage these panels to design buildings that are not only energy-efficient but also structurally resilient. Here are some key advantages:
Efficiency and Sustainability: SIPs’ load-bearing capacity enhances energy efficiency, reducing the need for extensive structural components and resulting in resource-efficient construction.
Design Flexibility: SIPs’ adaptability allows architects to create versatile and innovative designs, seamlessly blending aesthetics with structural integrity.
Speed of Construction: The use of SIPs as load-bearing components accelerates construction timelines, saving time and resources.
Structural Customization: Architects can tailor SIPs to meet specific structural requirements, ensuring they align perfectly with the project’s vision.
In conclusion, Structural Insulated Panels (SIPs) dispel the misconception surrounding their load-bearing capabilities. They can function as both a complete structural system and as infill walling for various frame structures, offering architects a wide range of design options. By harnessing the thermal efficiency and structural strength of SIPs, architects can create buildings that are not only environmentally sustainable but also architecturally remarkable.
Chapter 5: Analysing the Cost Implications of Structural Insulated Panels
5.1 Initial Investment vs. Long-Term Savings
It is essential to evaluate the cost implications of SIPs, considering both the initial investment and the long-term savings. While SIPs can be more expensive upfront compared to traditional timber frame constructions, the overall project costs typically increase by only 3-5%. The time saved during construction, reduced energy consumption, and enhanced thermal performance can offset the initial investment over the lifespan of the building.
5.2 Cost Comparison with Other Wall Systems
When comparing the costs of different wall systems, brick and block constructions may appear to be a more cost-effective option per square meter. However, the extended construction timeline, additional expenses associated with insulation, and challenges in achieving similar levels of airtightness make SIPs a competitive choice. By carefully managing construction details and employing skilled contractors, the overall additional cost of SIPs may be more minimal than it initially appears.
Chapter 6: SIPs Panel Types
When it comes to Structural Insulated Panels (SIPs), architects face a choice between two primary panel types, each offering unique advantages. Below, we explore these options to help you make an informed decision for your low-energy design project.
1. Sandwiched Panels (OSB-Polystyrene):
- Thermal Efficiency: These panels excel at insulating, helping maintain stable indoor temperatures and reducing energy consumption.
- Structural Strength: They provide robust construction, with resistance to wind and seismic forces.
- Ease of Construction: Standard sizes and straightforward installation streamline the building process.
2. Urethane-Infused Panels:
- Enhanced Insulation: Urethane foam offers superior thermal efficiency, ideal for stringent energy conservation standards.
- Reduced Thickness: Thin profile, equivalent insulation values – suitable for space constraints or modern aesthetics.
- Moisture Resistance: Resistant to moisture, making them great for humid or damp climates.
Collaborate with Experts:
Consult reputable SIPs manufacturers to align panel choice with your project’s specific needs. Their expertise ensures your selection suits your goals perfectly.
Chapter 7: Unveiling the Joining Techniques for Structural Insulated Panels
Creating an effective jointing system is crucial to achieving optimal thermal performance and airtightness with SIPs. Architects must explore different jointing techniques, such as using c24 timber for structural joints or employing spline joints for non-structural elements. Additionally, manufacturers offer unique jointing systems utilising mini panels to enhance wall U values and minimise air leakage at connection joints. By choosing the appropriate jointing techniques, architects can ensure the long-term performance and durability of the SIPs building.

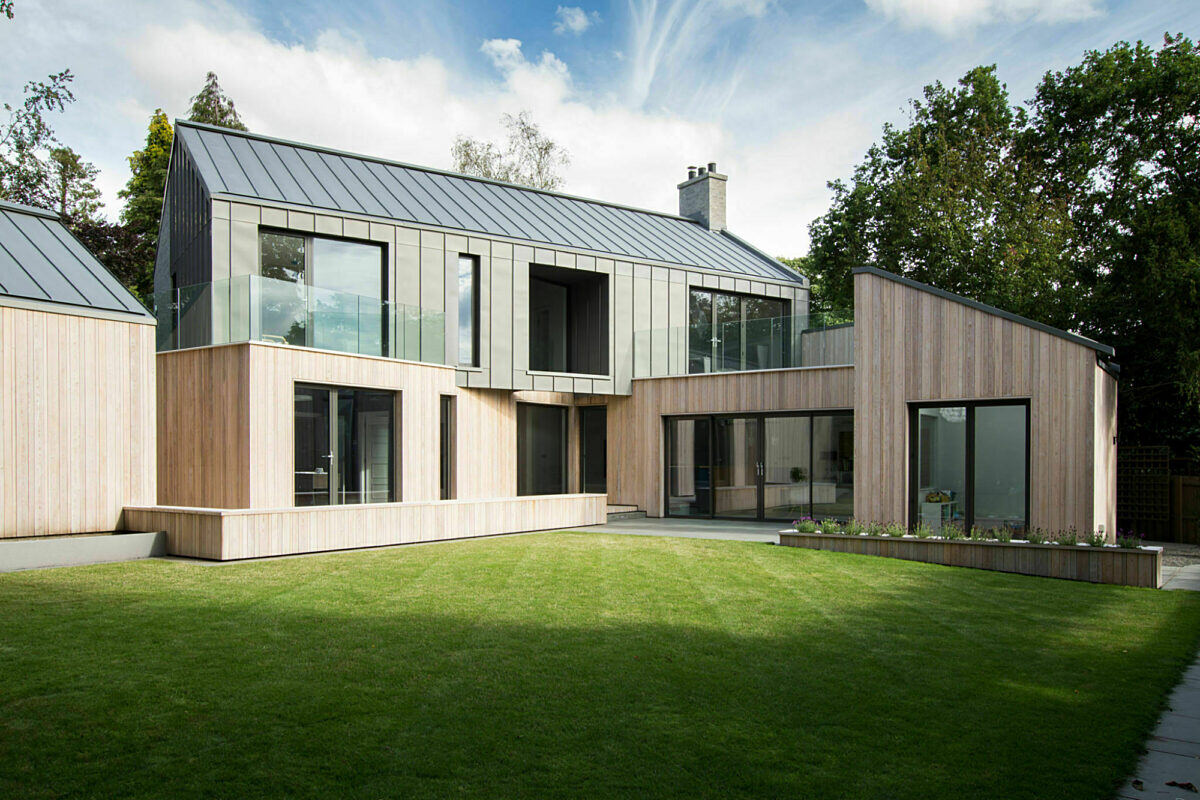

Clays Corbridge House by EDable Architects, built using SIPs
Conclusion
As we increasingly prioritise low-energy and low-embodied carbon designs, structural insulated panels have emerged as a game-changer in the construction industry. Offering enhanced thermal performance, accelerated construction timelines, and versatile design possibilities, SIPs provide a compelling alternative to traditional build methods. By understanding the pros and cons, collaborating with experienced professionals, and applying best practices, architects can harness the full potential of SIPs to create sustainable, energy-efficient, and beautiful buildings.
If you would like to talk through your project with the team, please do get in touch at mail@risedesignstudio.co.uk or give us a call on 020 3947 5886
