Scallop House: From Concept to Developed Design

Winston Road, N16 - Victorian Rear Extension, Stoke Newington

Every project has a moment where it stops being an idea and becomes a building. Not when the first brick is laid - earlier than that. It happens in the gap between concept and developed design, when the broad strokes of Stage 2 are tested, refined, and sometimes fundamentally reconsidered.

At Scallop House on Winston Road, that process has produced something that surprises even us.

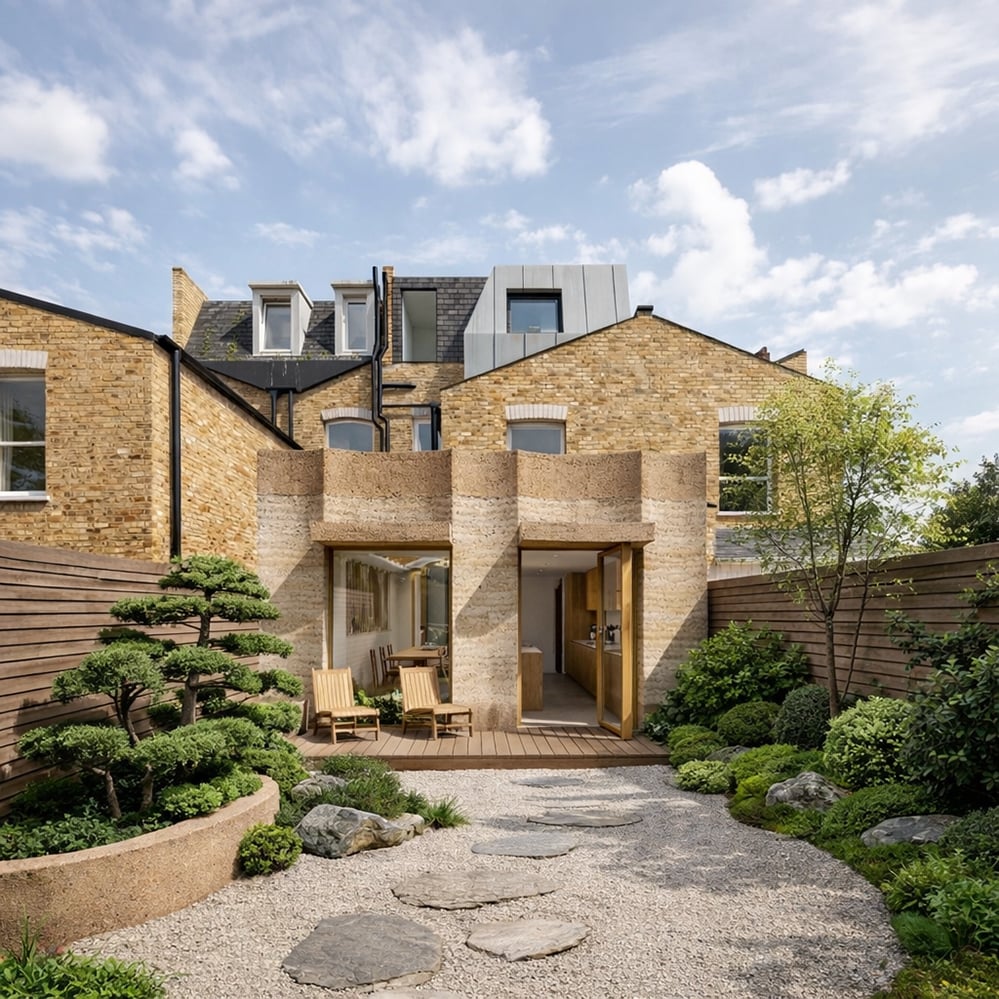

The garden elevation in context. The buff lime render extension sits at the base of the Victorian yellow-stock brick terrace, its scalloped columns framing a view into the oak-fitted kitchen beyond. Timber loungers on the deck and a carefully composed gravel and planting scheme complete the outdoor room.

Where We Started

The original Stage 2 concept for this Victorian rear extension in Stoke Newington N16 was bold and chromatic. Pink-terracotta lime render. Coloured concrete floors. A warm, saturated palette that announced itself confidently against the yellow stock brick of the parent house. The scalloped cylindrical columns were there from the beginning - three curved forms framing full-height glazing, opening the Victorian terrace to the south-facing garden. The form was right. The material direction needed to go further.

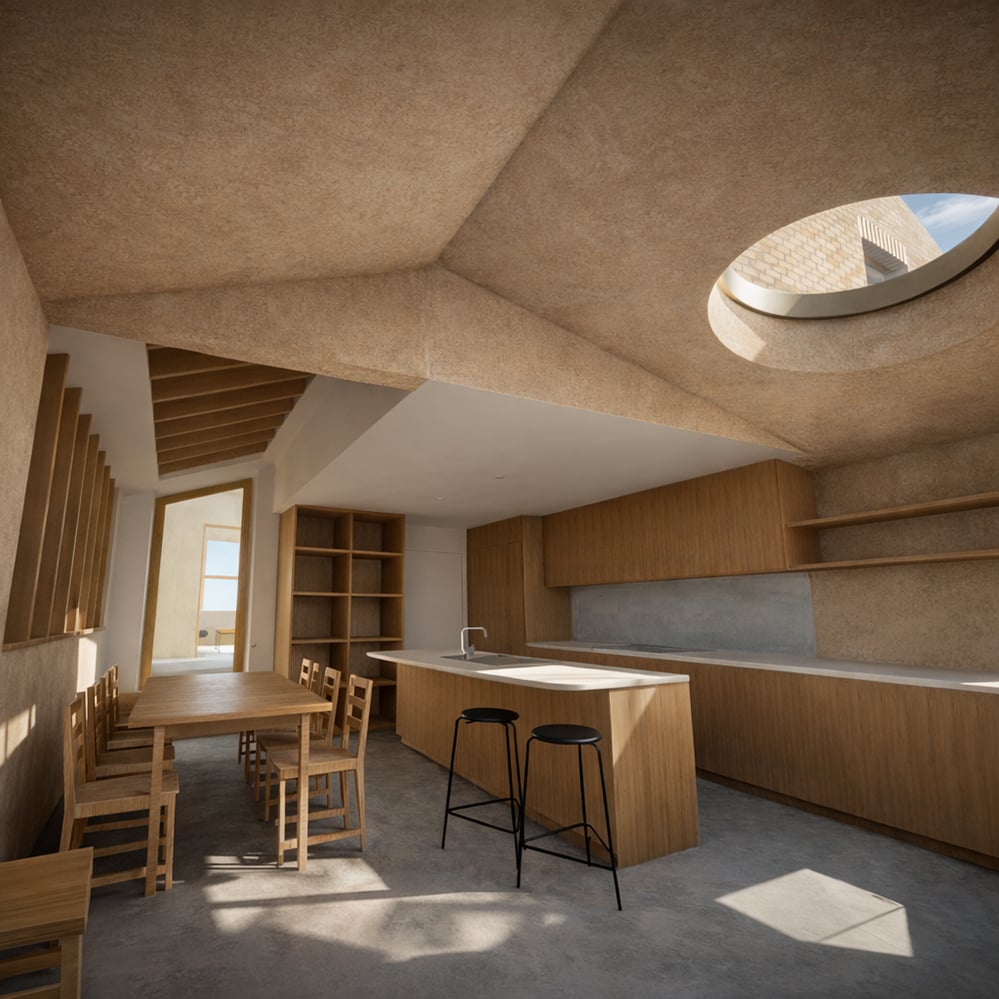

The kitchen-dining space looking back toward the original house. The folded clay plaster ceiling geometry responds to the ridge of the Victorian terrace above. The elliptical oculus rooflight sits at the apex, pulling a column of daylight to the polished concrete floor below.

What Stage 3 Changed

Developed design is where instinct meets reality. It is where you test every decision - structurally, thermally, spatially, materially - and where the project either holds together or reveals its weaknesses.

At Scallop House, the form held. The columns, the scalloped parapet detail, the elliptical oculus rooflight, the angled roof plane rising to meet the Victorian ridge - all of it survived scrutiny and became more resolved in the process.

The brass-finished door and window frames - a detail we debated at length - proved to be exactly right. Against the raw, mineral texture of the render, the brushed metal reads as something precious held within something ancient.

The landscape is not an afterthought. A Japanese-influenced garden of raked gravel, stepping stones, and cloud-pruned trees creates an outdoor room that draws the eye from kitchen to boundary - quietening the transition between built and grown.

Inside, the material palette tells a parallel story.

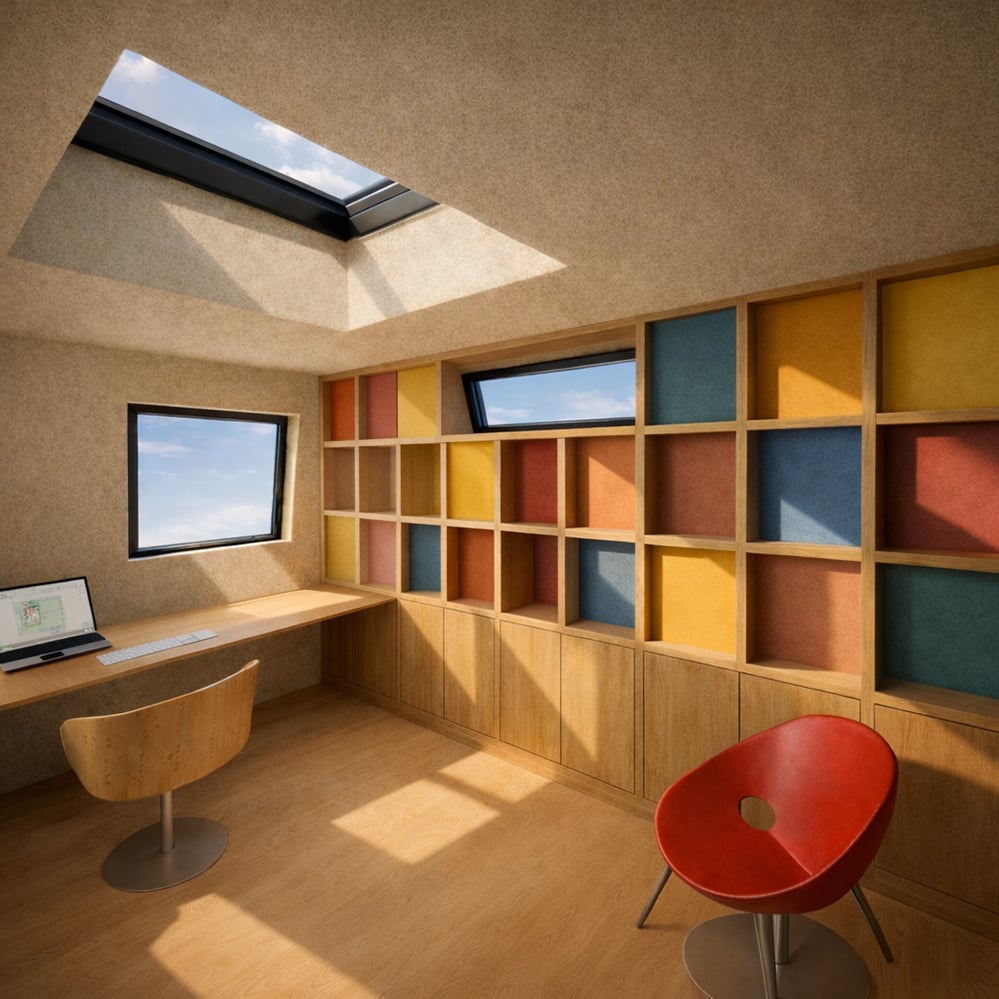

The second-floor home study. Hemp board lines the walls and sloping ceiling, while a full-height oak shelving grid - with backs finished in a De Stijl-inspired range of earth-pigment tones - anchors the far wall. Two rooflights flood the compact room with sky.

A Material Palette Built From the Ground Up

The shift from Stage 2 to Stage 3 on the interior was not cosmetic. It was a rethinking of the underlying material philosophy.

The colour came out. The natural materials came in.

Hemp-lime plaster now covers the vaulted ceiling and walls of the extension. The folded ceiling geometry - a direct response to the ridge profile of the Victorian house above - is finished in a hand-applied hemp-lime that absorbs and diffuses light rather than reflecting it. Soft, varied, and deeply tactile, it carries the mineral language of the lime render facade directly inside. This is not an aesthetic choice alone. Hemp-lime is breathable, hygroscopic, and low in embodied carbon. It regulates internal humidity naturally, and will not crack or trap moisture. It improves with age.

Clay plaster finishes the library, snug, and transition spaces - slightly warmer and more ochre in tone than the hemp-lime, but tonally related. Together the two materials create a palette of raw earth: wheat, sand, warm white, pale terracotta.

Oiled natural oak runs throughout - kitchen cabinetry, built-in shelving, window frames, bench seating. No stain, no applied finish. Just grain and oil and light. The island has a curved end that echoes the cylindrical columns outside. A long run of floor-to-ceiling shelving in the library creates a room that feels lined rather than furnished.

Polished concrete floors throughout the extension - cool underfoot in summer, warmed by underfloor heating in winter, and tonally perfect as a counterpoint to all the warm hemp and oak above.

The kitchen and dining space in afternoon light. Full-height oak cabinetry runs the length of the kitchen wall, while the vaulted clay plaster ceiling rises to the elliptical oculus rooflight above. Large oak-framed windows frame the south-facing garden beyond.

The Rooflight as Design Anchor

The elliptical oculus was conceived at Stage 2 and has only grown in importance through developed design. Positioned at the apex of the vaulted ceiling, it draws a column of daylight directly into the kitchen below. As the sun moves, that light traces a slow arc across the hemp-lime ceiling. It is passive solar design at its most direct: no technology, just geometry and orientation.

The rooflight's position was not arbitrary. It was modelled for solar gain performance - maximising low winter sun while limiting summer overheating through the angle of the roof plane above. Fabric first, always.

The Upper Level: A Different Register

The first-floor study has been given its own material identity. Hemp board lines the walls and sloping ceiling, left in its natural pale brown. Two rooflights cut into the slope flood the room with sky. A full-height oak shelving grid - with backs painted in De Stijl primaries, red, deep blue, yellow, off-white - anchors the far wall. It is the one moment of deliberate colour in the project, and it earns its place precisely because everything else is so restrained.

Heading to Planning

We are about to submit this scheme to Hackney planners. Hackney has a planning culture that engages seriously with well-argued contemporary proposals on Victorian terraces - provided the approach is contextually literate, materially resolved, and clearly explained.

We believe Scallop House meets that test. The form is rooted in the plasticity of traditional render buildings and the natural language of the garden. The materials are honest, durable, and low in embodied carbon. The sustainability case is built into the fabric of the building, not bolted on as an afterthought.

We look forward to making that case.

The library snug, looking through the brass-framed threshold into the kitchen-dining space beyond. Floor-to-ceiling oak shelving lines both walls; clay plaster wraps the ceiling and upper walls in a warm, pale tone. A black cast-iron radiator sits beneath as a deliberate note of contrast.

What This Project Demonstrates

Scallop House is a live demonstration of what a Victorian rear extension can be when the brief goes beyond extra square metres. It is an argument - in lime, hemp, clay, brass, and oak - for a different kind of residential architecture. One that ages well. One that breathes. One that, in twenty years, people will no longer be sure was not always there.

If you are considering a rear extension or whole-house refurbishment in Stoke Newington, Hackney, Islington, or across North London and want to explore what is possible, we would welcome the conversation.
